Tel Aviv TB22 - 30” Baritone

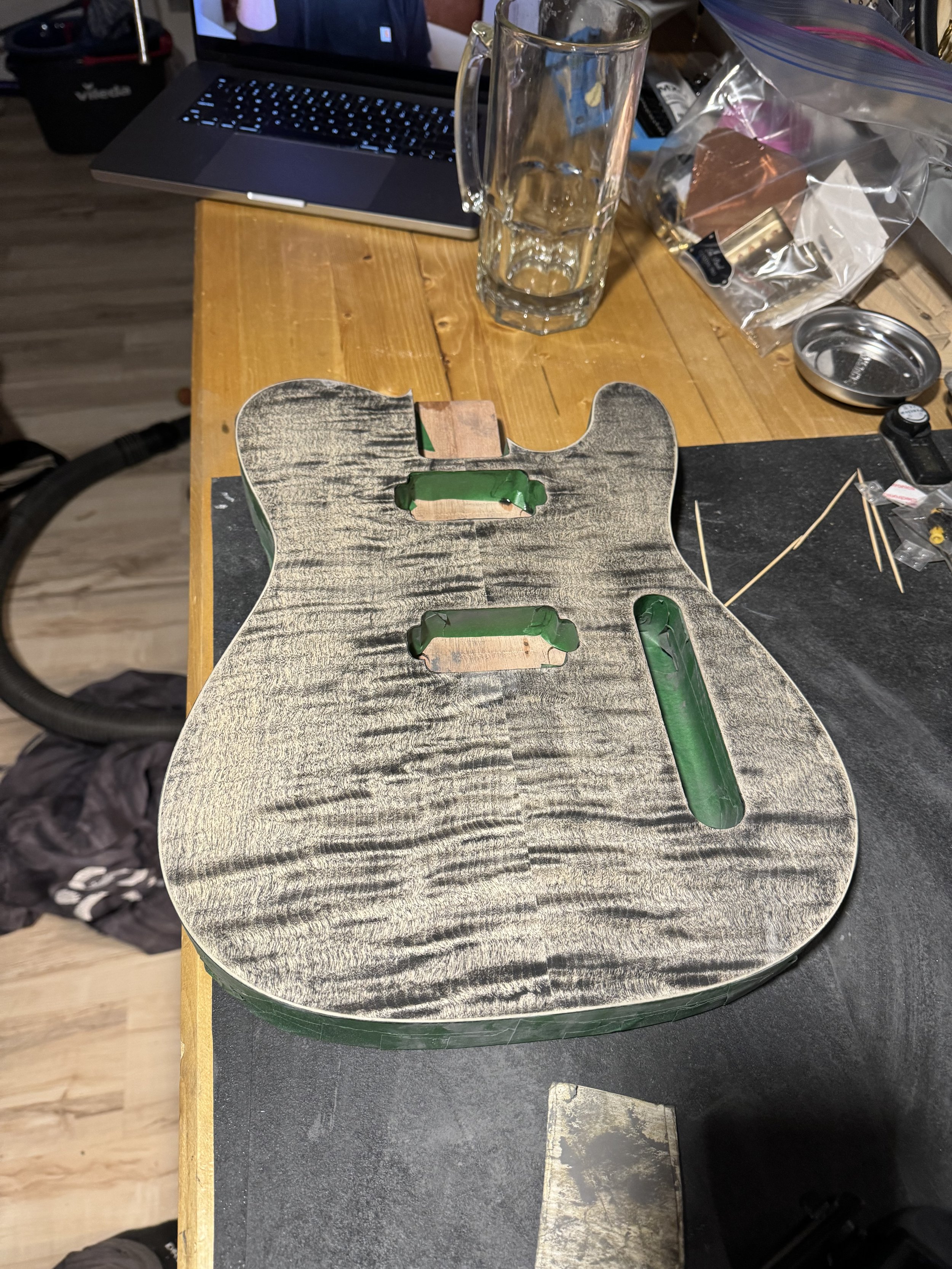

This was my first foray into guitar finishing. I had put together parts-casters, 3D printed my own guitar body designs, and then assembled them into functioning instruments. But I had never gone so far as to carve/paint/stain a wooden instrument to whatever the heck degree I did here. To be clear: I did not design or build the body and neck on this instrument, I simply bought something semi-complete from China and finished them to my liking. Complete builds came after this. Need to include this as it was an important stepping stone for me!
Specifications
| Body | |
|---|---|
| Construction | Solidbody |
| Back Wood | Mahogany |
| Top Wood | Maple |
| Top Wood Type | Veneer |
| Top Carve | Flat |
| Binding | Cream Top Binding |
| Neck | |
|---|---|
| Number of Frets | 22 |
| Scale Length | 30" |
| Neck Wood | Mahogany |
| Neck Construction | Single-Ply |
| Truss Rod | Dual Action |
| Neck Shape | Thin C |
| Neck Width at the Nut | 42mm |
| Neck Width at the Heal | 56mm |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |
| Fretboard Inlays | - |

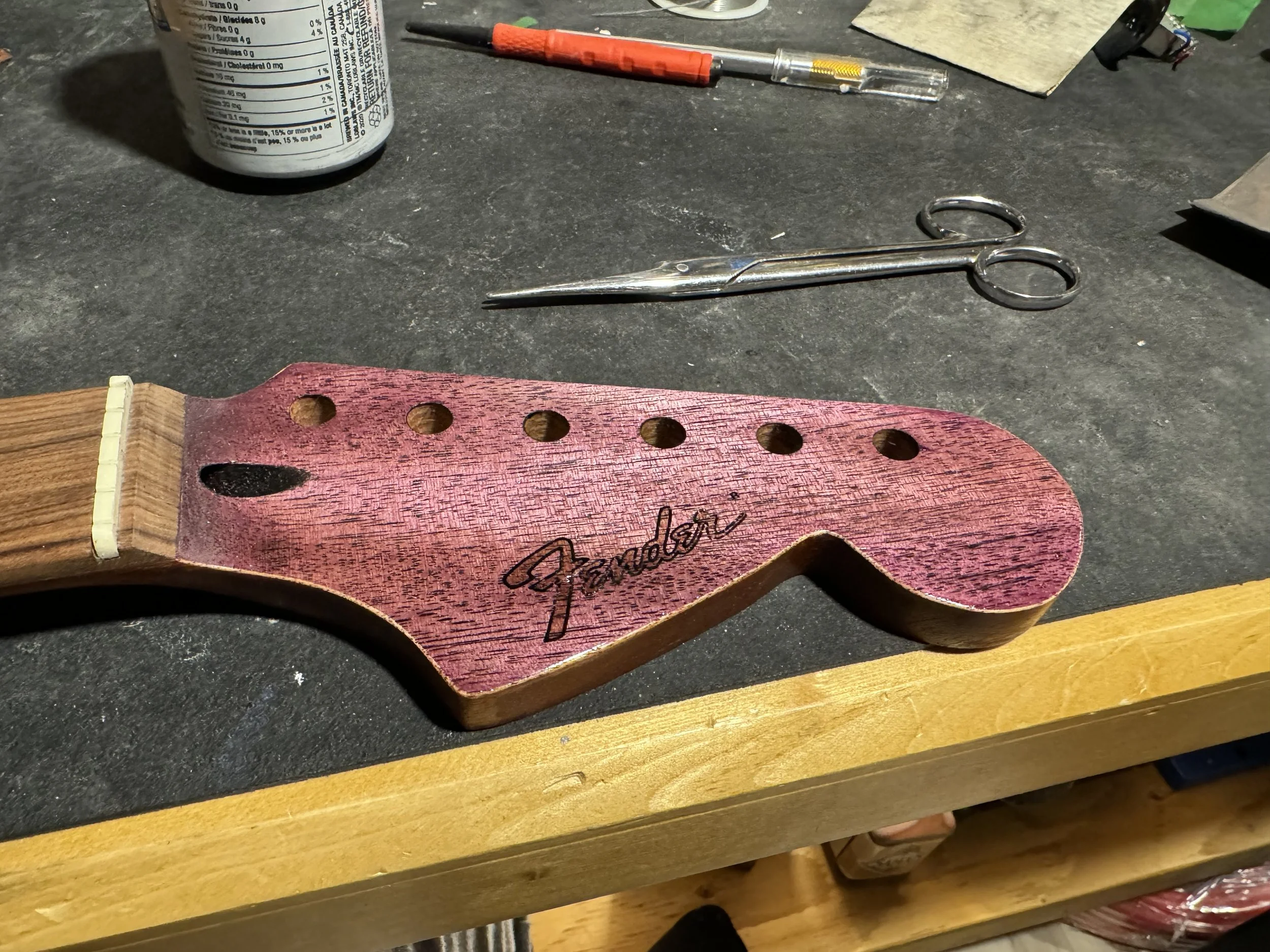

| Headstock | Fender Strat Style |
| Headstock Logo | Fender Watershed |
| Neck/Body Assembly | |
|---|---|
| Assembly Type | Bolt-on |
| Hardware | |
|---|---|
| Bridge | Black Hipshot-style |
| Tuners | Black Locking |
| Nut | Bone Nut |
| Electronics | |
|---|---|
| Bridge Pickup | Seymour Duncan Black Winter |
| Neck Pickup | Seymour Duncan Black Winter |
| Controls |
Volume - Push/Pull Coil Split Neck Pickup Tone - Push/Pull Coil Split Bridge Pickup 3-Way Blade Switch |
| Other | |
|---|---|
| Strings | Elixir NonoWeb Heavy 12-52 |
| Tuning | Drop Infinite |
